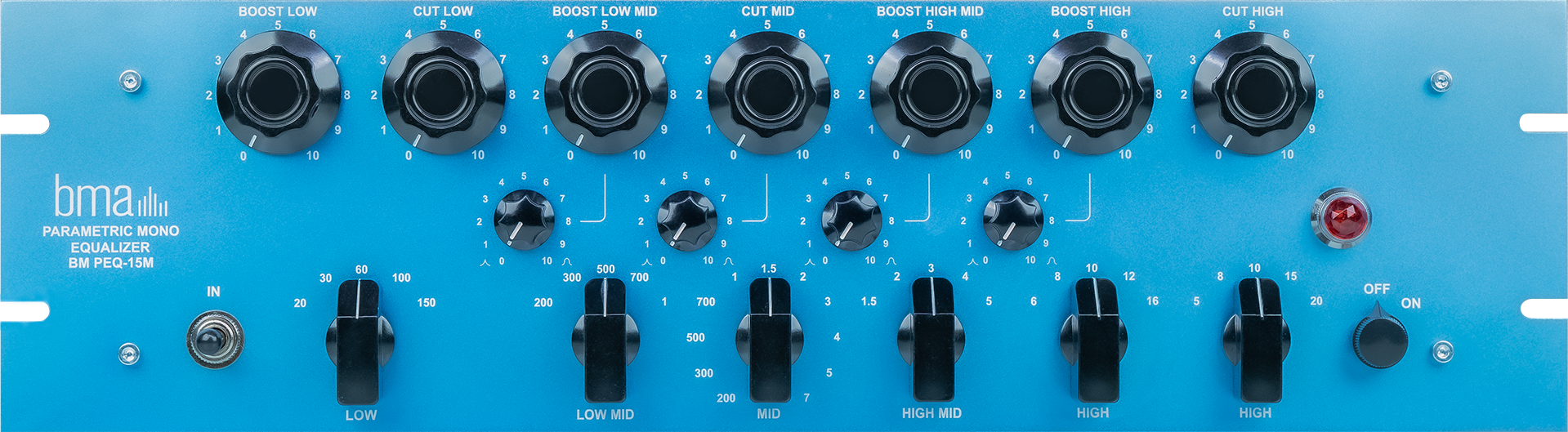

BM PEQ-15M

Classic Parametric Mono Equalizer

The BMA BM PEQ-15M is a high-quality, tube based parametric equalizer designed for precise and musical sound shaping in professional recording environments. Built with a focus on clarity and control, the PEQ-15M allows you to both boost and cut frequencies with accuracy, without compromising the natural character of the source.

Two-in-one design; the BM PEQ-15M goes a step further by incorporating additional mid bands for increased flexibility, making this classic-style equalizer even more versatile. perfect for mixing, mastering, and tracking applications.

■ Internals

```
Input Impedance: 600Ω
```
```
Output Impedance: 600Ω
```

Frequency Response: 30Hz–20kHz ±0.5dB

```
Gain: 35 dB
```
```
THD: < 1%
```
```
Power Supply: 230V / 115V (switchable)
```
```
Power Consumption: 55W
```

Operating Conditions:

```
Temperature range: 10°C to 35°C
```
```
Humidity range: 30% to 70% RH
```

Classic EQP and MEQ combination
Custom transformers – Made in-house

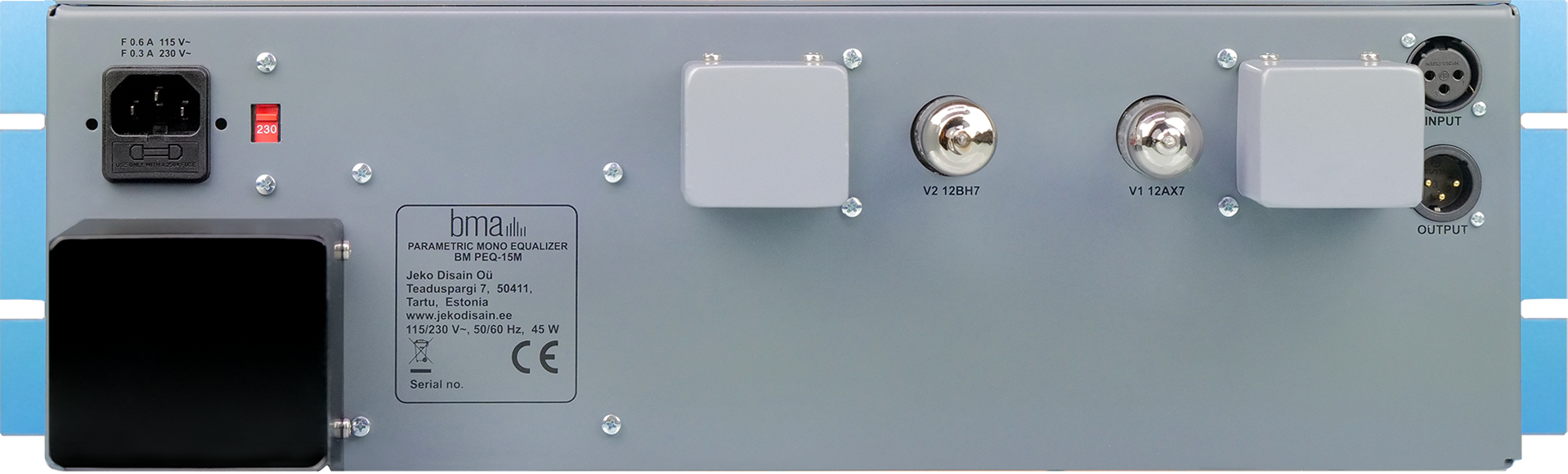

Neutrik connectors
High-quality components
Class A buffer amplifier
Fully passive EQ circuit
Custom inductors
115–230 V voltage selector
Handmade in EU

Download Manual

BM PEQ-15M

■ Custom Transformers

■ Hand-Build in EU

■ Premium Components

■See it in Action

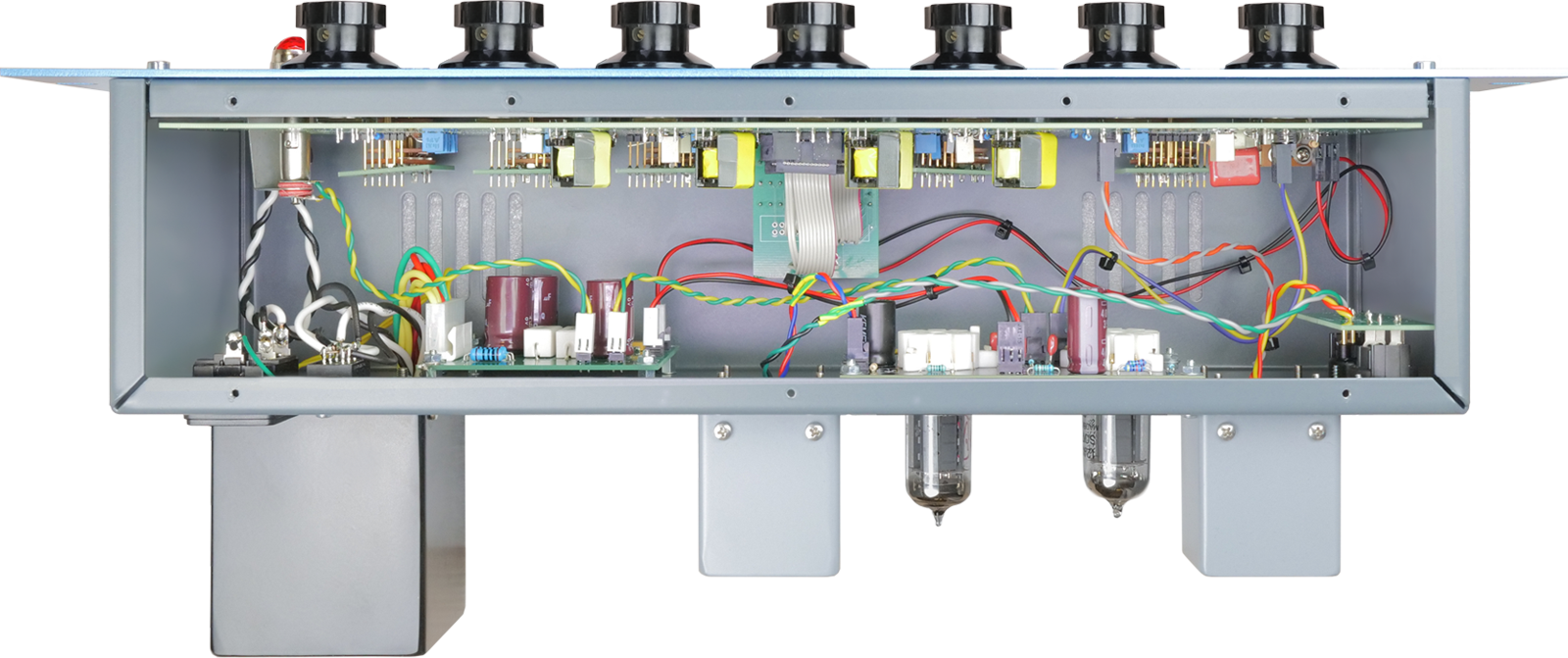

■ Internals

BM PEQ-15M

■ Custom Transformers

■ Hand-Build in EU

■ Premium Components

■See it in Action

■ Internals

Technical Specifications

Components Highlights

Manual
